Wear Resistant Hard Chrome Plated Corrugated Roller E Flute Corrugator Roll
Introduction
--The largest professional corrugated roller manufacturer in northern of China
--50CrMo refined forging steel supplied by the best manufacturer in China.
--A, C, B, E, F, G, N flute corrugated rolls
--High Speed can reach to 200m/min
--Hard Chrome 0.06-0.08mm
--Medium frequency quenching heating treatment machine makes --the hardness of base steel more than HRC58 and harden layer 8-12mm.
--High precision and high performance CNC grinding machine equipped with Germany control system.
--We design the flute profile according to customer’s medium paper GSM, speed, FCT requirement. The flute profile is more reasonable, suitable to customer’s machine
--Our corrugated rollers has been exported to many countries such as Korea, Russia, Egypt, India, Thailand, Myanmar, etc.
--Supply corrugated rollers for all kinds of corrugator line such as Fosber, BHS, BW Paper System, K&H, HSIEH HSU,Fuli, Wanlian, TCY, Champion, West River, Mingwei and so on.
Flute Profile
Almost every set of corrugating rolls are needed to be designed and customized separately according to the width, diameter, flute height, corrugated paper GSM, speed and cardboard physical index requirement.
| Flute |
Profile |
Height(mm) |
Pitch(mm) |
Flutes/300mm |
T.U.R |
| A |
UV |
4.5-5.0 |
8.0-9.5 |
34±3 |
1.45-1.52 |
| C |
UV |
3.5-4.0 |
6.8-7.9 |
41±3 |
1.37-1.47 |
| B |
UV |
2.5-3.0 |
5.5-6.5 |
50±4 |
1.33-1.41 |
| E |
UV |
1.1-2.0 |
3.0-3.5 |
93±6 |
1.24-1.36 |
| F |
UV |
0.8-1.0 |
2.2-3.2 |
115±20 |
1.19-1.25 |
| G |
UV |
0.6-0.8 |
1.8-2.8 |
136±20 |
1.15-1.20 |
| N |
UV |
0.4-0.6 |
1.2-2.2 |
193±55 |
1.10-1.15 |
| Others |
UV |
Customized |
Design |
Design |
Design |
About us
Main products:Tungsten Carbide corrugating rolls, hard chrome corrugating rolls, pressure roller, glue roll and doctor rolls. The products are mainly sold in China, India, South Korea, Russia ,Thailand, Myanmar, Iran, Egypt and other countries.Therefore, our products are widely recognized by the global customers, which make us gaining sound reputation all over the world.
Product Tags:
|
|

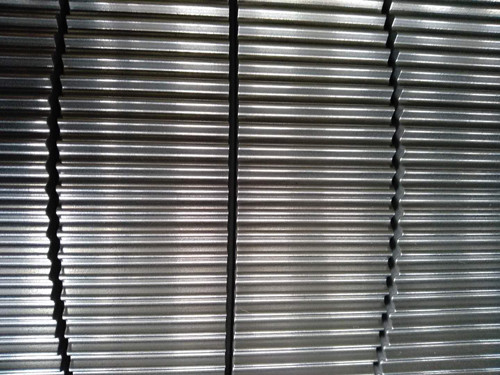

E Flute Wear Resistant Hard Chrome Plated Roller Images
|
